About the Nine-grid Mechanical Slider (Direct Push)

Nine-grid is a highly tunable direct push slider that lets you pick bead groove density and stroke style on the fly.

Key Features

• 12-mode click system
  One platform delivers paragraph, dense, or ultra dense clicks plus four stroke styles for a total of 12 play modes.

• 9 spring holes layout
  The core grid uses nine spring holes so you can relocate springs and limit pins to change feel in minutes.

• Single bead or double bead
  Switch between single bead tracks for half stroke or single side long stroke, or double bead tracks for asymmetric stroke or ultra short stroke.

• Tool friendly tuning
  Remove the external limit screws to open the plate and swap setups. Fast adjustments encourage real experimentation.

• Simple, durable stack
  Body uses only two main shells, one PEEK guide rail, and same-spec screws for easy service and tight tolerances.

The 12 Play Modes

• Strokes

  1. Half stroke

  2. Single side long stroke

  3. Asymmetric stroke

  4. Ultra short stroke

• Grooves
  A. Paragraph groove
  B. Dense groove
  C. Ultra dense groove

• Combine
  4 stroke styles × 3 groove densities = 12 distinct modes

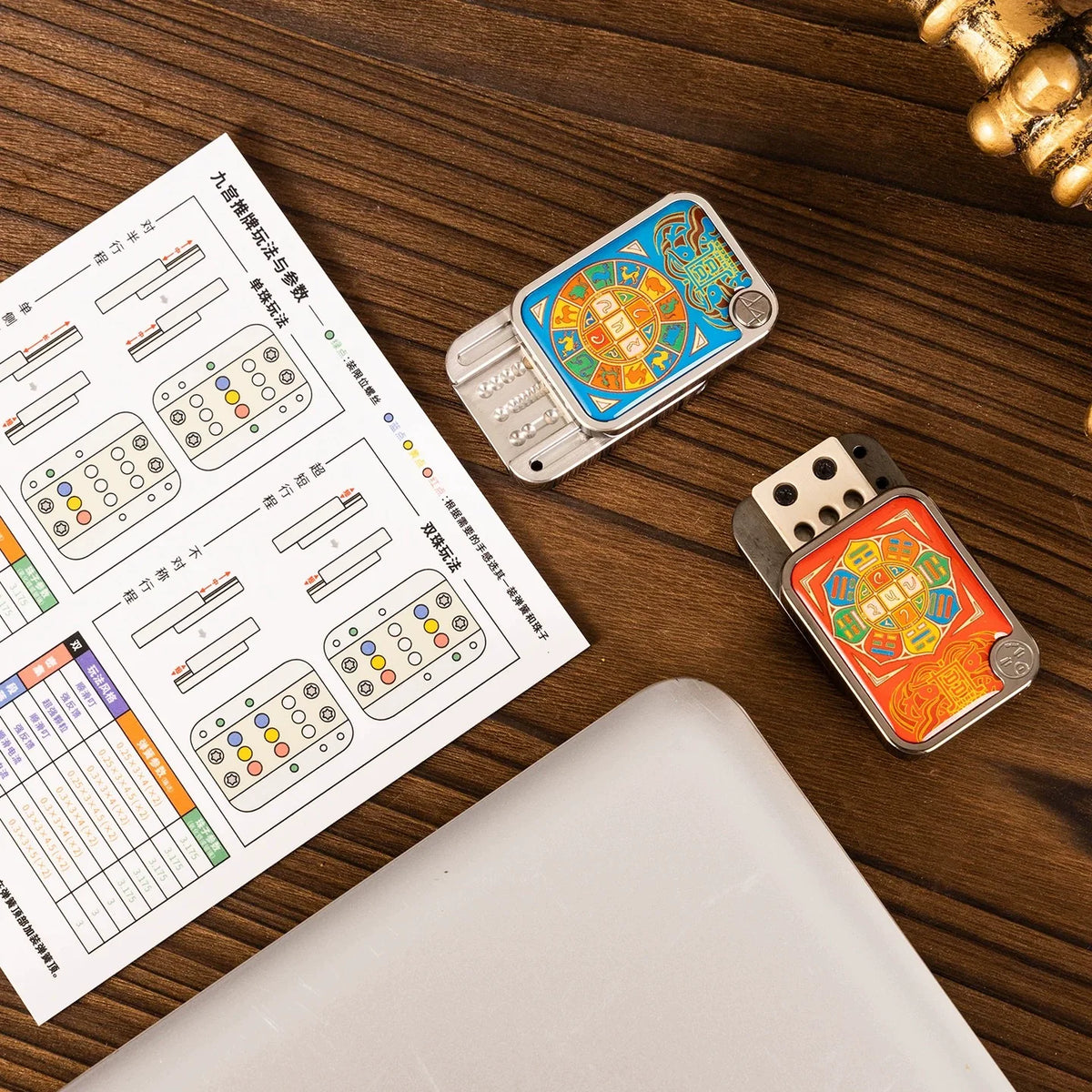

  See the instruction for exact hole and pin placements.

Track Options

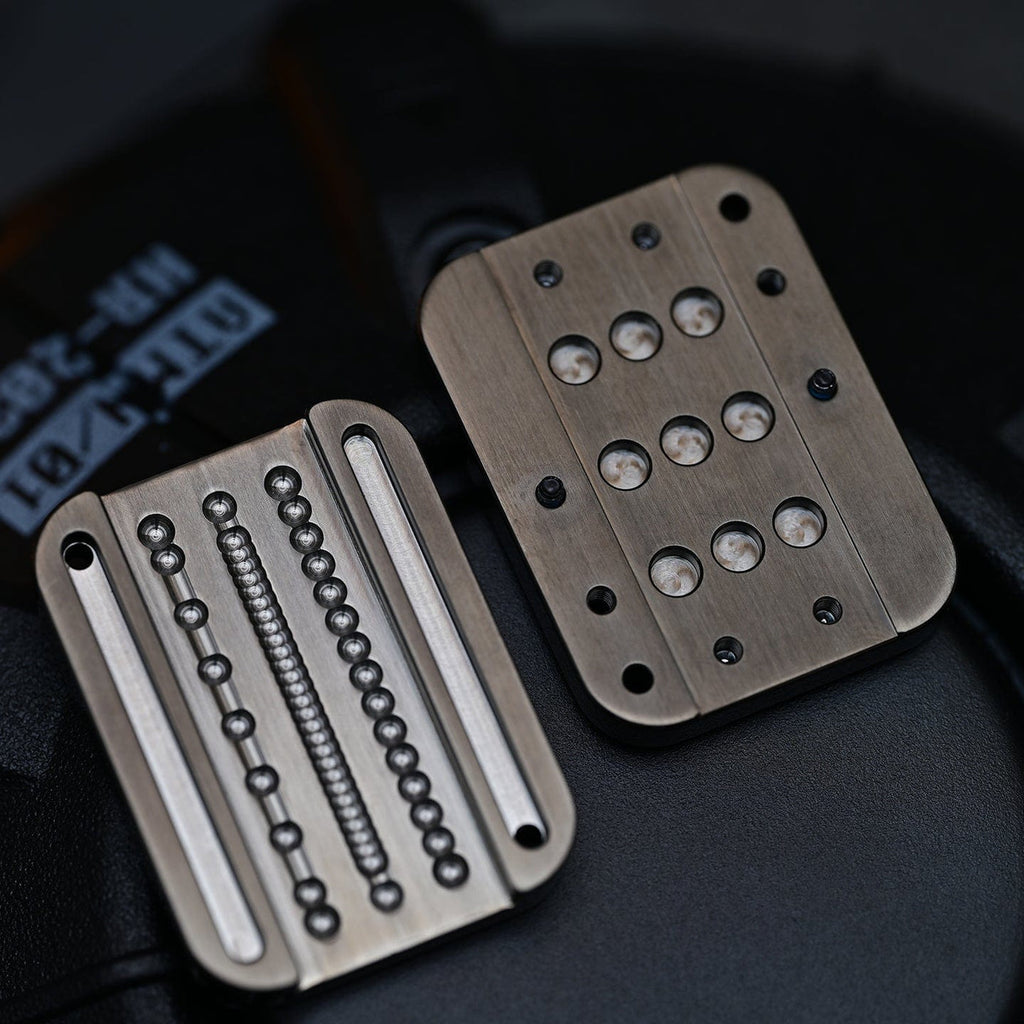

• Paragraph track with 9 beads

• Dense track with 15 beads

• Ultra dense track with 29 beads

Materials

• PEEK guide rail for low friction and wear resistance

Disassembly and Adjustment

• External limit screws out

• Lift plate

• Move springs and limit pins per the chart

• Reassemble and test
